NZXT ATX CASING H510i PHANTOM GAMING SPECIAL EDITION

Not yet rated Write a review
RM509.00
Ex Tax: RM509.00
Product Code:
CA-H510I-AR
  • Talk to us on WeChat

  • Talk to us on Whatsapp

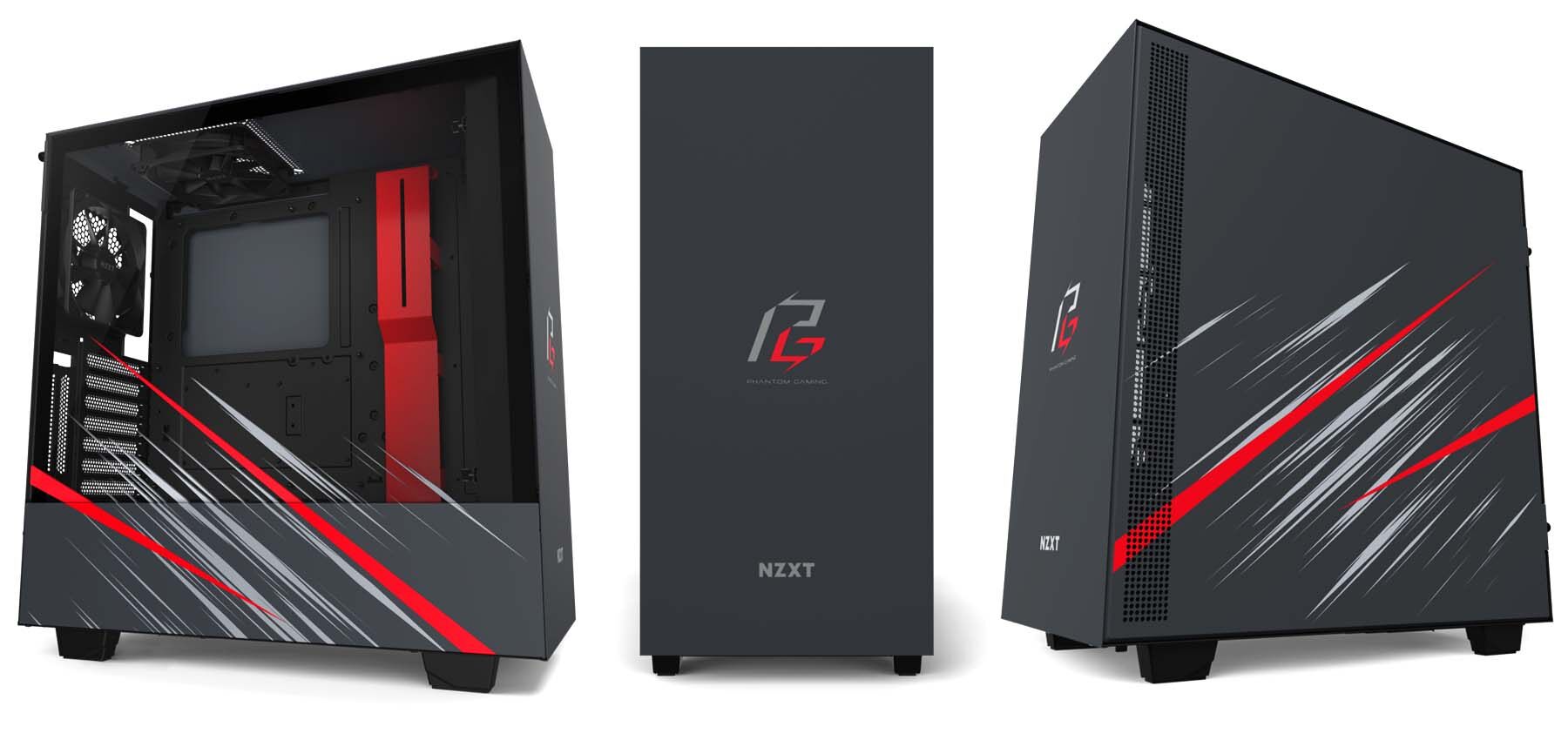

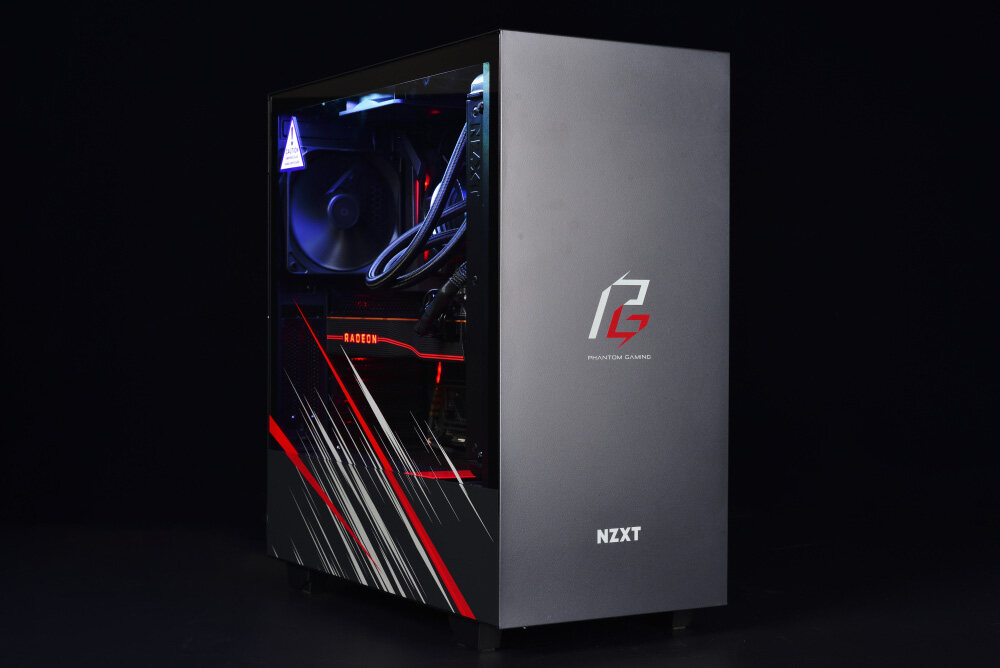

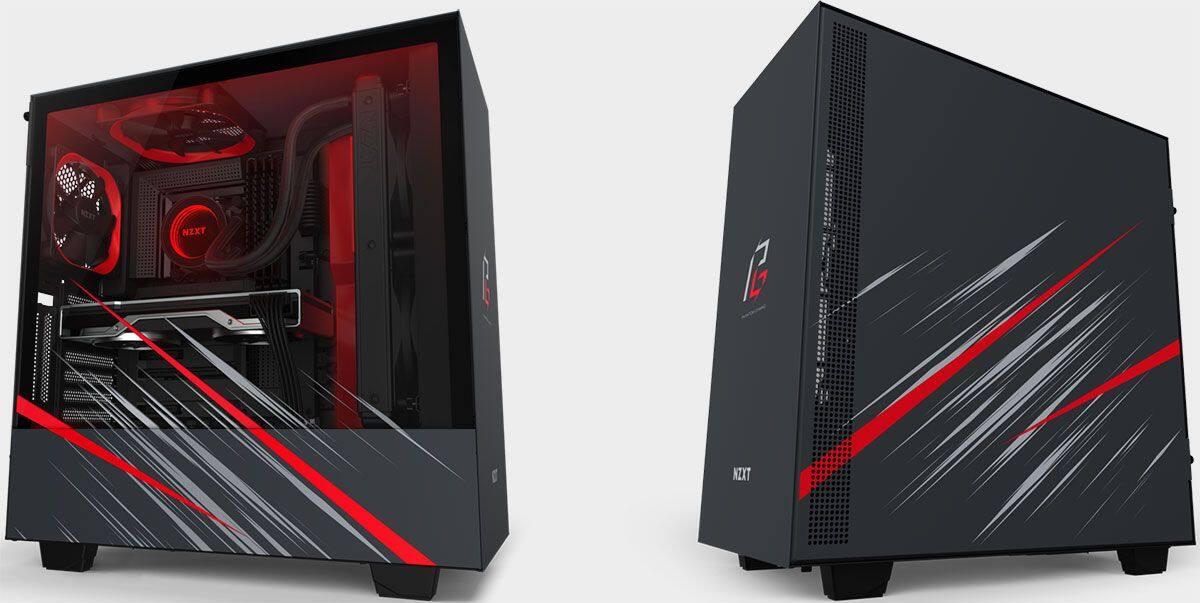

NZXT H510i Phantom Gaming Special Edition

DimensionsW: 210 mm H: 460 mm D: 428mmMaterial(s)SGCC Steel, Tempered GlassWeight6.8kgMotherboard SupportATX, Micro-ATX, Mini-ITXFront I/O Ports1x USB 3.1 Gen 2 Type-C1x USB 3.1 Gen 1 Type-A1x Headset Audio JackFiltersAll Air IntakesSmart Device V23x Fan channels with Max 10W per channel output*2x RGB LED port support up to 4x HUE 2 addressable LED strips or 5x Aer RGB or Aer RGB 2 fansBuilt-in noise detection module*Note: If a splitter is used, fan control is regulated depending on the fan connected to the 4-pin port. Do not use low-noise adapters.LED Strip(s)2 integrated addressable LED stripVertical GPU Mount2 SlotsIncluded AccessoriesInstallation screws10x Cable ties1x Headset Audio Jack splitter (4 pole to 3 pole)Drive Bays2.5”: 2+13.5”: 2+1Expansion Slots7Radiator SupportFront: 2x 140 or 2x 120mm with PullRear: 1x 120mmFan SupportFront: 2 x 120/ 2 x 140mmTop: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included)Rear: 1x 120mm (1 Aer F120 Case Version included)Fan SpecsAer F120 (Case Version)Speed: 1200 ± 200 RPMAirflow: 50.42 CFMNoise: 28 dBABearing: Rifle BearingClearanceCable Management: 19-23mmGPU Clearance: Up to 381mm w/o front watercooler installed, up to 325mm with front watercooler installedVertical GPU Mount Clearance: 40.64mmCPU Cooler: Up to 165mmFront Radiator: 60mmRear Radiator: 60mmReservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel)
