Easy to set up and designed to fit anywhere, T10 brings ultra-fast, full-strength mesh WiFi to your home in minutes. With its modular design, the T10 mesh WiFi system spreads strong WiFi through any kind of building material. Designed for medium-size homes with increasing demand for fast wireless speeds with a wide coverage area. T10 provides over 4,500 sq. feet of coverage and complies with the latest IEEE 802.11ac Wi-Fi standard, delivering up to 300Mbps + 867Mbps combined wireless speed. Meanwhile, the built-in 1GHz processor provides powerful data handling capacity to improve wireless transfer efficiency, while the wireless roaming function helps you stay connected as you move from room to room.

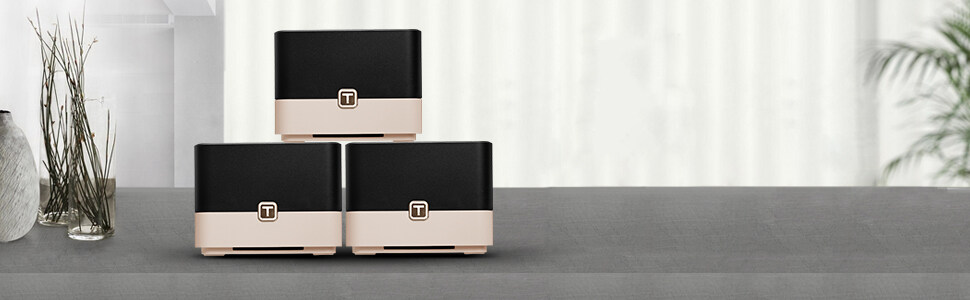

TOTOLINK Whole Home Mesh WiFi System
Model No.: T10
Simultaneous Dual Band
T10 uses both the 2.4GHz and 5GHz bands simultaneously to deliver the fastest wireless speeds available. The 2.4GHz band is ideal for smart home devices due to its increased range and high degree of compatibility. The 5GHz band reduces interference and increases bandwidth, perfect for lag-free games and large-file downloading, and video streaming.
Coupled with a MU-MIMO adapter and latest Wave 2 wireless-AC technology. The T10 allows multiple devices to connect simultaneously eliminating lag and buffering. That means faster downloads and smoother streaming for all your devices.
Smart Mesh Networking by One Touch
Create a Smart Mesh wireless network with the touch of a button. Press & hold the T-button on the Master device to connect T10 satellites and they will connect automatically to establish a wireless mesh network with wide coverage, meeting your Wi-Fi demand across all your devices.
T10 is a smart networking device that allows you to establish intelligent wireless network via multiple T10s simply by one touch. It complies with the latest IEEE 802.11ac wave2 Wi-Fi standard, delivering up to 300Mbps+ 867Mbps combined wireless speed. Built-in 1GHz processor providespowerful data handling capacity to improve Wi-Fi transfer efficiency. Meanwhile, the wireless roaming function helps exchange to better signal source, keeping you connected and enjoy high speed Wi-Fi throughout your house. Generally, T10 and the pack are designed for medium-sizehomes with increasing demand of wide Wi-Fi network.
- Complies with the next generation IEEE 802.11ac Wi-Fi standard.
- 867Mbps on 5GHz and 300Mbps on 2.4GHz band for total 1167Mbps simultaneously.
- Smart Mesh networking with one touch.
- Supports multiple devices extension for wide Wi-Fi coverage.
- Wireless roaming helps users auto switch to stronger signal source.
- Next-GEN MU-MIMO technology improves user experience comprehensively.
- 1GHz processor provides powerful performance with low power consumption.
- Intelligent Beamforming delivers highly targeted and
- efficient Wi-Fi connection.
- Full gigabit WAN and LAN ensures high speed Internet access and wired speed.
- Supports DHCP, Static IP and PPPoE broadband functions.
- Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.
- Connects to secure network easily and fast using WPS.
- QoS: Bandwidth Control based on IP address.
- Classic black and white design with compact size.
Smart Mesh Networking by One Touch
Simply press the T button on the device, all the other T10 will be connected automatically to establish smart wireless network with wide coverage, meeting all your demand for Wi-Fi connection on multiple terminals.
Keep You Connected Throughout Your Home
T10 supports wireless roaming function, all the Wi-Fi devices will auto change to stronger signal source when you are moving, keeping you connected and enjoy seamless Wi-Fi at any corner of your house.
Extremely High Speed Experience
T10 adopts the next generation 802.11ac technology and offers wireless speed up to 1167Mbps, optimized for music, HD video and online gaming.
Coupled with a MU-MIMO adapter, the latest wireless-AC technology allows multiple devices share faster and stronger home Wi-Fi than normal 11ac routers at the same time.
Beamforming Technology for Focus Wi-Fi
Beamforming focuses Wi-Fi signal directly to all your connected smart phones, tablets and laptops, more efficient Wi-Fi network and wider coverage.
Simultaneous Dual Band
2.4GHz and 5GHz bands working concurrently make two separated Wi-Fi networks available for you to choose, of which the 2.4GHz Wi-Fi shows high compatibility and 5GHz band reduces interference, perfect for lag-free games and large-file downloading.
High Speed Internet Access
With one gigabit WAN port and two gigabit LAN ports, you are able to enjoy high speed Internet access and wired connection as well as fast Wi-Fi, making the best of bandwidth, ideal for homes having both wireless and wired connection needs.
Multiple Wireless Network for Access Control
More than one Wi-Fi networks can be added to provide secure Wi-Fi access for guest sharing your home or office network.
1 *1000Mbps WAN Port
1 * USB2.0 Port
1* RST Button
2 *1000Mbps LAN Ports
12V DC / 1A
1 *Mesh Button
5GHz: Up to 867Mbps
5GHz < 20dBm
11g 54M: 17Â±1.5dBm
11n HT20: 16Â±1.5dBm
5G: 11a 54M: 18Â±2dBm
11n HT20 MCS7: 17Â±2dBm
HT40 MCS7: 17Â±2dBm
11ac VHT80 MCS9: 16Â±2dBm
IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g ,IEEE 802.11n
2.4GHz: Up to 300Mbps
2.4GHz < 22dBm
64/128-bit WEP, WPA, WPA2 and WPA-Mixed
2.4G: 11b 11M: 20Â±1.5dBm
Bridge with AP
Power Adapter *1
Ethernet Cable *1
Quick Installation Guide *1
Storage Temperature: -40â„ƒ~70â„ƒ(-40â„‰~158â„‰)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Wireless ISP Client Router
Multiple SSID, MAC Authentication, Universal Repeater, WDS, WPS, IPTV
Reboot Schedule, Wireless Schedule
MAC Filtering, IP Filtering, Port Filtering, URL Filtering Port Forwarding, DMZ
QoS, DDNS, DoS, WMM, Access Control, etc.
T10 Wireless Router *1
Operating Temperature: 0â„ƒ~50â„ƒ(32â„‰~122â„‰)
